Specifications:
|
Model
|
|
|

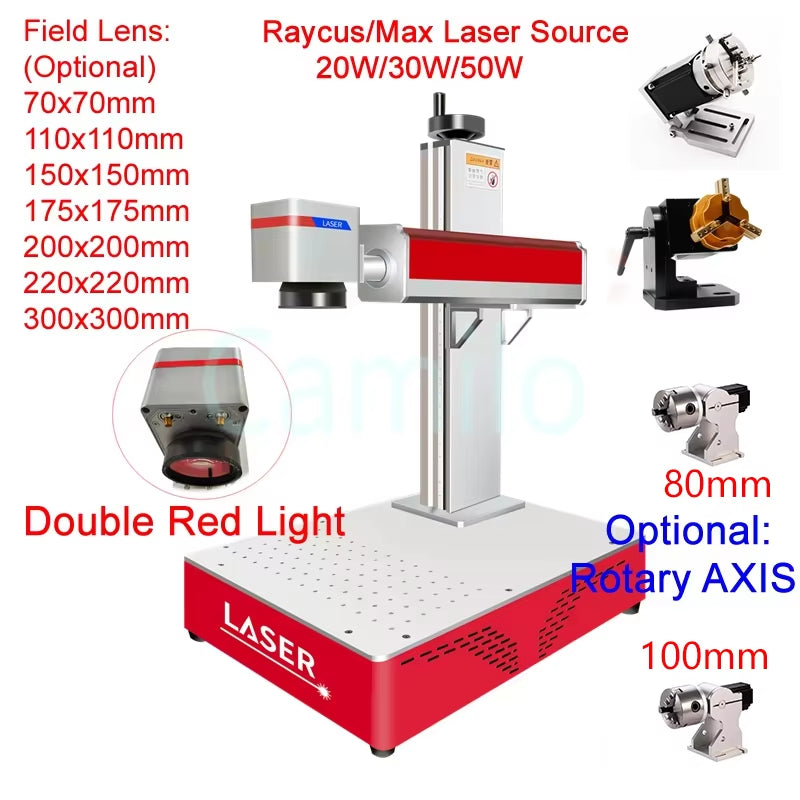

Laser power
|
20/30/50W Raycus /MAX
|
|
Working Area
|
70x70mm/110x110mm/150x150mm/175x175mm/200x200mm/220x220mm/300x300mm (Optional)
|
|
Cooling Mode
|
Air Cooling
|
|
Laser Wavelength
|
10.64 um
|
|
Frequency of pulse
|
20-100 KHz
|
|
Marking Depth
|
≤0.3 mm
|
|
Marking Speed
|
≤4000 mm/s RC1001 (IF UPGRADE to SG7110 7000mm/s , price is higher US$150 )
|
|
Marking Lines
|
1-10 lines
|
|
Minimum Line Width
|
0.01 mm
|
|
Minimum Character
|
0.15 mm
|
|
Repeatability Accuracy
|
±0.002 mm
|
|
Resolution Ratio
|
0.1 mm
|
|
Marking Content
|
Text, pattern, date, bar code, etc
|
|
Operation System
|
Microsoft Windows XP or Windows 2000,WIN 7, WIN8, WIN 10
|
|
Control Software
|
EZCAD2 ENGLISH Control Software
|
|
Graphic Format
Supported
|
BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc.
|
|
Unit Power
|
500W
|
|
Operation Temperature
|
5°C-40°C
|
|
Relative Moisture
|
≤ 90%, no fog
|
|
Dimensions(L*W*H)
|
45 x 55 x 75 cm
|
|
Power supply
requirements
|
220 V or 110V
|
|
Weight
|
35KG
|
|
Warranty
|
24 months
|
|
